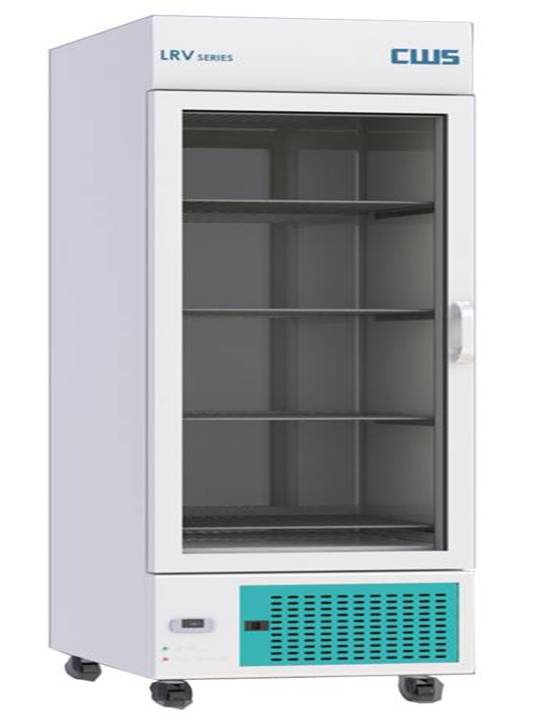

LAB REFRIGERATORS
The CWS Systems Lab refrigerator provides you the most affordable space for product storage. Lab refrigerators are available in various sizes and versions to suit the customer requirements. Standard product featured with glass doors. Hard door is available based on customer requirement.
Hermetically sealed, commercially available, India make
compressor. Fixed/Removable shelves (in upright freezers). Cam type
latch to provide one handed operation and to ensure secure door
closure. Tools free filter access. One year comprehensive
warranty.
Advantages
- User friendly microprocessor based control panel
- User convenient removable trays.
- Tools free front mounted filter. Easy to access. Also protects the condenser fins and mechanical parts against dust build up.
- Customary designs are available.
- Horizontal refrigerators are also available.
|
Temperature range |
+2°C to +4°Cwith 0.1°C display resolution and increment. |
|
Insulation thickness |
50 mm PUF insulation |
|
Cabinet material |
Stainless steel SS304 |
|
Outer material |
Powder coated CRCA |
|
Controller type |
PID controller with set & process value display |
|
Temp. sensor |
RTD type PT100 sensor |
|
Temp. deviation alarm |
Set value +/- 2°C |
|
Refrigerant |
R134a (CFC, HCFC free refrigerant) |
|
Catalog #
|
LRV210 |
LRV365 |
LRV440 |
LRV575 |
LRV1055 |
|
Capacity |
210 Litres |
365 Litres |
440 Litres |
575 Litres |
1055 Litres |
|
Inner Dimensions L x B x H, mm |
420 x 485 x 1035 |
503 x 540 x 1348 |
503 x 540 x 1634 |
560 x 610 x 1685 |
1052 x 600 x 1675 |
|
Outer Dimensions L x B x H, mm |
500 x 655 x 1475 |
583 x 710 x 1800 |
583 x 710 x 2080 |
640 x 780 x 2150 |
1152 x 785 x 2188 |
|
No. of Trays |
3 |
4 |
5 |
5 |
10 |
