BLOOD COMPONENT FREEZER (-80°C)
CWS offers high quality Blood Component Freezers in various sizes that are suitable for blood components storage, in hospitals and blood banks.
The quality of the product is considered as the key factor in design without compromising the safety and ergonomic requirements. The combination of low power consumption, lowest noise level and the standard use of ecological, green refrigerants make it the most environmental friendly.
Blood Compo Freezers with Backup Refrigeration System is also available based on customer requirements.
|
Temperature range |
-75°C to -80°C with 0.1°C display resolution and increment. |
|
Insulation thickness |
150mm PUF insulation for cabinet and 100mm for door. |
|
Cabinet material |
Stainless steel SS304 |
|
Outer material |
Powder coated CRCA |
|
Controller type |
PID controller with set & process value display |
|
Temp. sensor |
RTD type PT100 sensor |
|
Temp. deviation alarm |
Set value +/- 5°C |
|
Evaporator |
Plate and tube type |
|
Refrigerant |
R404a & R508b (CFC, HCFC free refrigerants) |
|
Record Type |
7 Days circular chart recorder / RS232 communication interface |
|

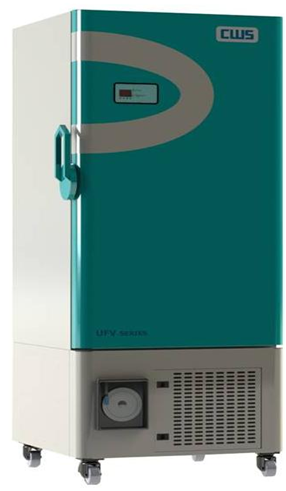

Catalog #
|
CFV72 |
CFV156 |
CFV264 |
CFV352 |
CFV440 |
|
Capacity |
120 Litres |
239 Litres |
395 Litres |
527 Litres |
659 Litres |
|
Inner Dimensions L x B x H, mm |
320 x 430 x 870 |
480 x 430 x 1160 |
480 x 710 x 1160 |
640 x 710 x 1160 |
800 x 710 x 1160 |
|
Outer Dimensions L x B x H, mm |
620 x 730 x 1690 |
780 x 730 x 1980 |
780 x 1010 x 1980 |
940 x 1010 x 1980 |
1100 x 1010 x 1980 |
|
No. of Racks |
6 |
12 |
12 |
16 |
20 |
|
Blood Bags capacity (450ml) |
72 |
156 |
264 |
352 |
440 |
|

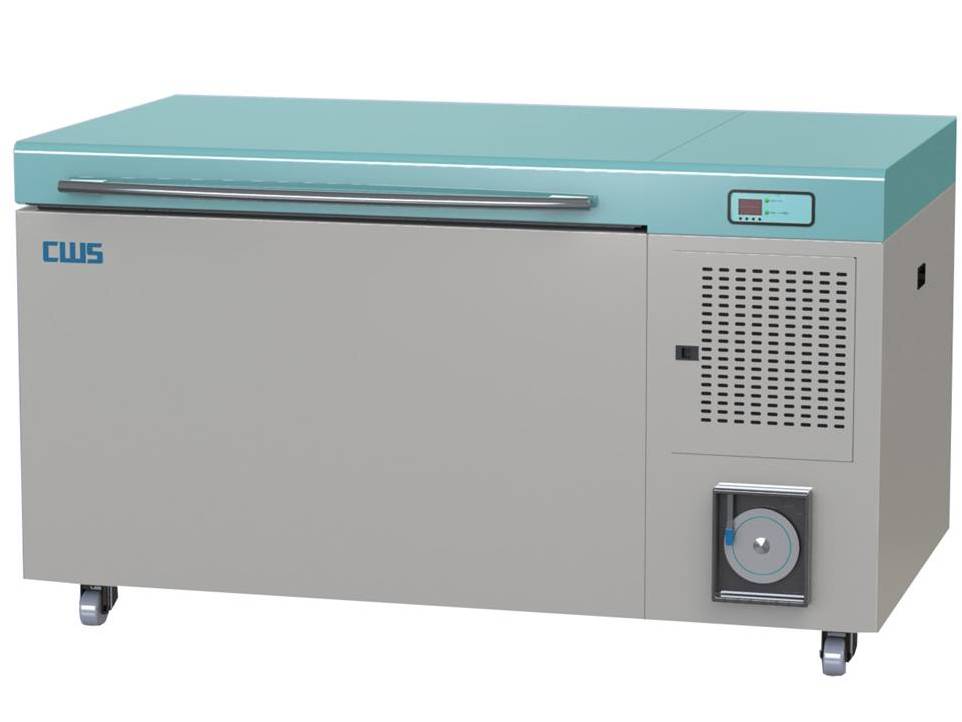

Catalog #
|
CFH108 |
CFH216 |
CFH360 |
CFH432 |
CFH504 |
|
Capacity |
130 Litres |
246 Litres |
392 Litres |
492 Litres |
657 Litres |
|
Inner Dimensions L x B x H, mm |
465 x 465 x 600 |
640 x 640 x 600 |
1020 x 640 x 600 |
1280 x 640 x 600 |
1710 x 640 x 600 |
|
Outer Dimensions L x B x H, mm |
1165x765x1020 |
1340x940x1020 |
1720 x 940 x 1020 |
1980 x 940 x 1020 |
2410 x 940 x 1020 |
|
No. of Racks |
9 |
16 |
24 |
32 |
36 |
|
Blood Bags capacity (450ml) |
108 |
216 |
360 |
432 |
504 |
