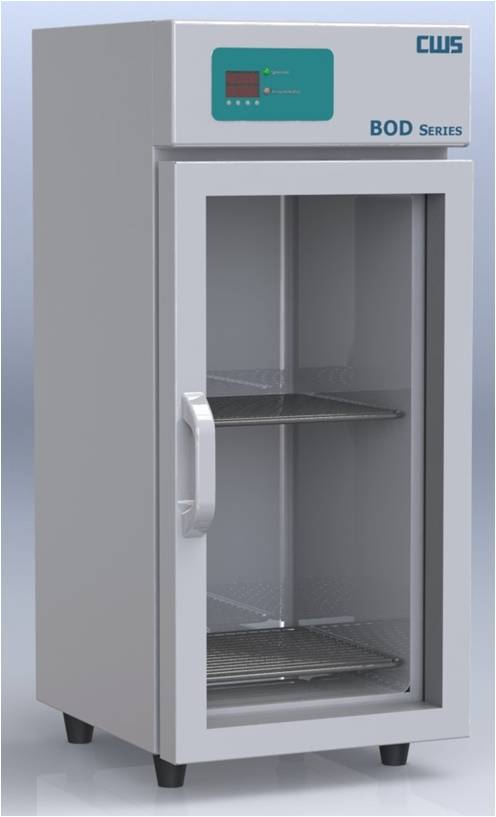

Low Temperature Incubators (often
called B.O.D Incubators) are commonly used for applications such as
B.O.D. Determinations, Plant and Insect Studies, Fermentation
Studies, and Bacterial Culturing among many others. CWS BOD
Incubators have a temperature range of 4°C to 70°C degrees at an
ambient of 25°C.
Features:
Microprocessor based controller with set value and process value display. hermetically sealed, commercially available compressors. CFC free eco-friendly refrigerant. Forced air circulation to maintain temperature uniformity. Toughened glass door. One year comprehensive warranty.
|
Temperature range |
+2°C to +4°Cwith 0.1°C display resolution and increment. |
|
Controller type |
PID controller with set & process value display |
|
Temp. sensor |
RTD type PT100 sensor |
|
Temp. deviation alarm |
Set value +/- 2°C |
|
Refrigerant |
R134a (CFC, HCFC free refrigerant) |
Models:
|
Catalog #
|
BOD200 |
BOD350 |
BOD430 |
BOD560 |
|
Capacity |
200 Litres |
350 Litres |
430 Litres |
560 Litres |
|
Inner Dimensions L x B x H, mm |
415 x 480 x 1030 |
498 x 535 x 1344 |
498 x 535 x 1630 |
555 x 605 x 1680 |
|
Outer Dimensions L x B x H, mm |
500 x 655 x 1475 |
583 x 710 x 1800 |
583 x 710 x 2080 |
640 x 780 x 2150 |
|
No. of Trays |
3 |
4 |
5 |
5 |
