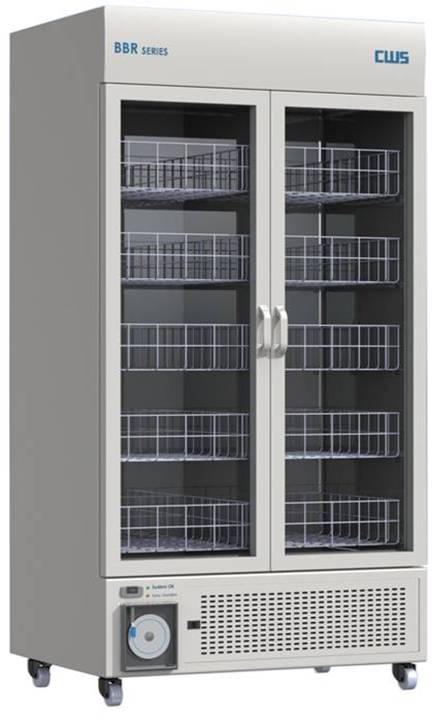

BLOOD BAG REFRIGERATOR
Affordable and secure long term storage solutions for blood bag storage
Blood Bank Refrigerators are specially designed for storage of blood bags, erethrocyte concentrates at 4deg C. With superior construction and improved temperature accuracy, this equipment meets the requirements for storage of the blood bags. Built-in 7 days chart recorder.
Hermetically sealed, commercially available, India make compressors. Fixed/Removable shelves (in upright freezers). Cam type latch to provide one handed operation and to ensure secure door closure. Tools free filter access. One year comprehensive warranty.
* RS232 interface available based on customer requirement.
Advantages
- Ergonomically located micro-processor based control panel.
- SS Interior and powder coated exterior.
- User convenient removable trays.
- Tools free front mounted filter. Easy to access. Also protects the condenser fins and mechanical parts against dust build up.
- RS232
interface eliminates chart recorder as well as human
intervention.
- Customary designs are available.
|
Temperature range |
+2°C to +4°Cwith 0.1°C display resolution and increment. |
|
Insulation thickness |
50 mm PUF insulation |
|
Cabinet material |
Stainless steel SS304 |
|
Outer material |
Powder coated CRCA |
|
Controller type |
PID controller with set & process value display |
|
Temp. sensor |
RTD type PT100 sensor |
|
Temp. deviation alarm |
Set value +/- 2°C |
|
Evaporator |
Plate and tube type |
|
Refrigerant |
R134a (CFC, HCFC free refrigerant) |
|
Chart Recording Type |
7 Days circular chart recorder. |
ACCESSORIES:
- De-icing kit
- Ice Scrapers
- Voltage Stabilizers
- Blood Bag Trays
- Blood Bank Accessories
|
Catalog #
|
BBR120 |
BBR160 |
BBR200 |
BBR300 |
BBR600 |
|
Capacity |
210 Litres |
365 Litres |
440 Litres |
575 Litres |
1055 Litres |
|
Inner Dimensions L x B x H, mm |
420 x 485 x 1035 |
503 x 540 x 1348 |
503 x 540 x 1634 |
560 x 610 x 1685 |
1052 x 600 x 1675 |
|
Outer Dimensions L x B x H, mm |
500 x 655 x 1475 |
583 x 710 x 1800 |
583 x 710 x 2080 |
640 x 780 x 2150 |
1152 x 785 x 2188 |
|
No. of Trays |
4 |
5 |
5 |
5 |
10 |
|
Blood Bags capacity (450ml) |
120 |
160 |
200 |
300 |
600 |
